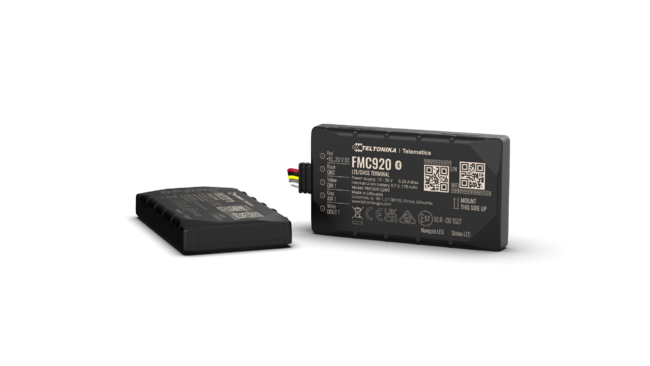

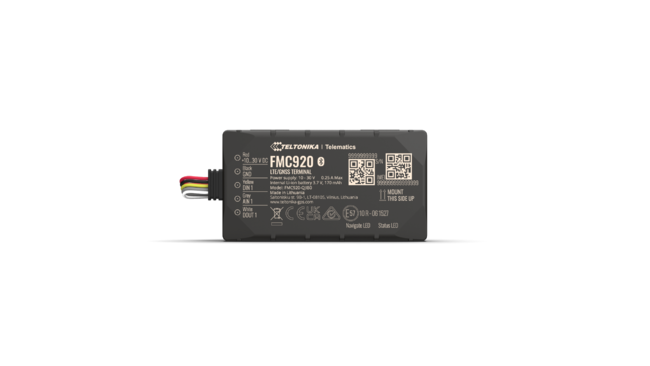

FMC920

Module

• Name | FMC920-QJIB0: Quectel EG915U-EU with Teltonika TM2500 | FMC920-QJIB0: Quectel EG915U-LA with Teltonika TM2500
• Technology | LTE (Cat 1) / 2G (GSM/GPRS) / GNSS / BLUETOOTH

GNSS

• GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
• Receiver | 33 tracking channel | 99 acquisition channel
• Tracking sensitivity | -165 dBM
• Position accuracy | < 2.5 m CEP
• Velocity accuracy | < 0.1 m/s (within +/- 15% error)
• Hot start | < 1 s
• Warm start | < 25 s
• Cold start | < 35 s

Cellular

• Technology | GSM
• Transmit power | Class 4 for GSM850/900: 23±2dBm | Class 1 for GSM1800/1900: 20±2dBm | Class 3 for LTE-TDD: 23±2.7dBm | Class 3 for LTE-FDD: 23±2.7dBm
• 2G bands | GSM: B2/B3/B5/B8
• 4G LTE bands | SLM320-E: LTE FDD: B1/B3/B7/B8/B20/B28 LTE-TDD:B38/B40/B41 SLM320-LA: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD:B40
• Data transfer | LTE:LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL) GSM:GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
• Data support | SMS (text/data)

Power

• Input voltage range | 10-30 V DC with overvoltage and reverse polarity protection
• Internal back-up battery | 170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
• Power consumption – At 12V < 3mA (Ultras

Bluetooth

• Specification | 4.0 + LE
• Supported peripherals | Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support

Operating Environment

• Operating temperature (with battery) | -20 °C to +40 °C
• Operating temperature (without battery) | -40 °C to +85 °C
• Storage temperature (without battery) | -40 °C to +85 °C
• Storage temperature (with battery) | -20 °C to +60 °C
• Operating humidity | 5% to 95% non-condensing
• Ingress Protection Rating | IP54
• Battery charge temperature | 0 °C to +45 °C
• Battery discharge temperature | -20 °C to +60 °C
• Battery storage temperature | -20 °C to +45 °C for 1 month | -20 °C to +35 °C for 6 months

Interface

• Digital inputs | 1
• Digital outputs | 1
• Analogue inputs | 1
• GNSS antenna | Internal High Gain
• Cellular antenna | Internal GSM High Gain
• USB | 2.0 Micro-USB
• LED indication | 2 status LED lights
• SIM | Micro-SIM
• Memory | 128MB internal flash memory

Physical specification

• Dimension | 79 x 43 x 12 mm (L x W x H)
• Weight | 54 g

Features

• Sensors | Accelerometer
• Scenarios | Green Driving, Over Speed detection, Jamming detection, GNSS Fuel Counter, DOUT Control via Call, Excessive Idling detection, Towing detection, Crash detection, Auto Geofence, Manual Geofance, Trip
• Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• Configuration and firmware update | FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth ®)
• SMS | Configuration, Events, DOUT control, Debug
• GPRS commands | Configuration, DOUT control, Debug
• Time synchronization | GNSS, NITZ, NTP
• Fuel monitoring | LLS (Analogue), OBDII dongle
• Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)

Certification and approvals

• Regulatory | FMC920-QJIB0: CE/RED, E-Mark, CITC, TRA, RCM, RoHS, REACH | FMC920-QKIB0: RCM, RoHS, Anatel (in progress)
