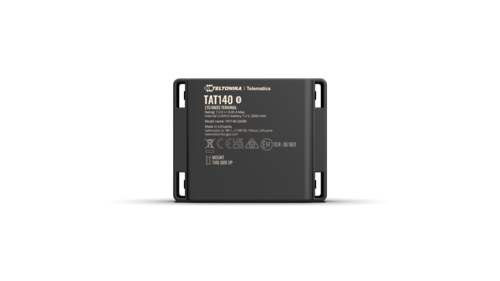

TAT140

Module

• Name | TAT140-QJIBO: Quectel EG915U-EU with Teltonika TM2500 | TAT140-QKIB0: Quectel EG915U-LA with Teltonika TM2500
• Technology | LTE (Cat 1) / 2G (GSM/GPRS) / GNSS / BLUETOOTH

GNSS

• GNSS | L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS*, QZSS*, DGPS*, AGPS*
• Receiver | 33 tracking channel | 99 acquisition channel
• Tracking sensitivity | -165 dBM
• Position accuracy | < 2.5 m CEP

Cellular

• Technology | LTE Cat 1, GSM
• 2G bands | TAT140-QJIBO: EG915U-EU GSM: B2/B3/B5/B8 TAT140-QKIB0: EG915U-LA GSM: B2/B3/B5/B8
• 4G LTE bands | TAT140-QJIBO: EG915U-EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28 TAT140-QKIB0: EG915U-LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66
• Data transfer | LTE: LTE FDD : Max 10Mbps (DL)/Max 5Mbps (UL) GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
• Transmit power: Class 4 for GSM850/900: 33±2dBM Class 1 for GSM1800/1900: 30±2dBM Class 3 for LTE-FDD: 23±2dBM
• Data support | SMS (TEXT), Network protocols (TCP,UDP,TLS, EGTS, MQTT**) ** Optional protocols available with custom firmware applications, for more information contact your sales manager.

Battery Power

• Internal battery | Extremely low self-discharge Li-SOCl2 swappable, non-rechargeable battery, 7,2V 2200mAh
• Battery life | Up to 5 years (when used as a backup tracker only via Bluetooth®)* Up to 4 years (1 LBS – cell towers report per day)* Up to 3 years (1 GNSS report per day)* *Battery life estimates are influenced by many factors such as outdoor temperature, frequency of reporting, installation, and orientation of the device, network coverage, additional functionalities (like Bluetooth® scanning enabled) and more.

Bluetooth

• Specification | 4.2 + LE
• Supported peripherals | ELA Temperature, Humidity, Movement and Magnet sensors, EYE sensor, Universal BLE sensor support

Physical specification

• Dimensions | 78 x 63 x 28 mm (L x W x H)
• Weight | 115 g

Interface

• GNSS antenna | Internal High Gain
• Cellular antenna | Internal GSM High Gain
• USB | 2.0 USB Micro B
• LED indication | 1 status LED lights
• SIM | Micro-SIM
• Memory | 128MB internal flash memory

Operating Environment

• Operating temperature (with battery) | -20 °C to +40 °C
• Operating temperature (without battery) | -20 °C to +60 °C
• Storage temperature (without battery) | -20 °C to +45 °C
• Operating humidity | 5% to 95% non-condensing
• Ingress Protection Rating | IP68
• Battery discharge temperature | -60 °C to +85 °C
• Battery storage temperature | Recommended max. 30 °C

Features

• Sensors | Accelerometer
• Scenarios | Accelerometer wake up, GNSS, Bluetooth ® sensor support, Recovery mode, Periodic tracking on stop /  on move, Scheduler with time zones, Backup tracking, Static navigation, Lost BLE sensor
• Sleep modes | Single custom sleep mode
• Configuration and firmware update | FOTA WEB, Teltonika Configurator (USB, Bluetooth)
• SMS | Configuration, Events, Debug
• GPRS commands | Configuration, Debug
• Time synchronization | GNSS, NITZ, NTP

Certification and approvals

• Regulatory | CE / RED, E-Mark, RCM, UKCA
